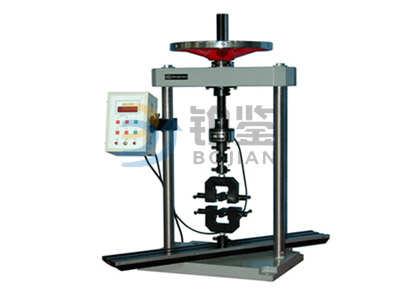

Product name：Manual artificial board universal testing machine
Product model：
Product range：
Immediate consultation
Online Message
Man-made board universal testing machine for man-made board and veneer man-made board for a variety of physical and chemical performance test research, can satisfy the GB17657-2013 "man-made board and veneer man-made board the physical and chemical performance method, internal bond strength test, the bond strength of surface bonding strength test, test, static strength test, elastic modulus test, holding screw force test, etc., is the ideal of man-made board quality inspection departments at all levels and production enterprise test equipment, can provide you with accurate test results.
GB17657-2013: physical and chemical properties of artificial boards and decorative surfaces
1. Use single chip microcomputer data acquisition and digital display force value.
2. Have peak retention and overload protection.
3. Manual loading, small size and light weight.
Item number | technical | specification | remarks |
1 | maximum test pressure (N) | 5 | |
2 | The rotation speed of 2 specimens (r/min) | 60±2 | |
3 | test force precision (N) | ±0.2 | |
4 | voltage (AC) 220V | 220V，50Hz | |
5 | he maximum size of the 5 specimen (mm) | longl=110±2, wigth=110±2, (or diaφ120±2) | |
6 | shape size (wide x long x high) (mm) | 392×480×318 | |
7 | weight (kg) | 45 |
