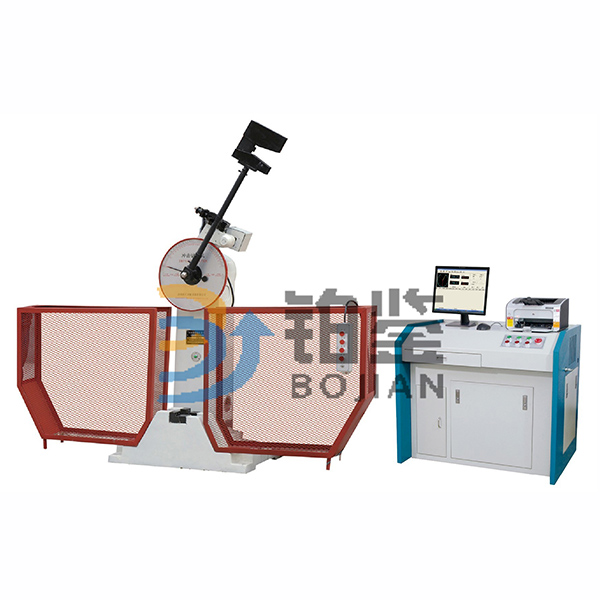

Product name：Microcomputer controlled semi-automatic shock testing machine
Product model：BJJB-300B
Product range：1, 300 joules host: 1 + 2, 150 j, 300 j pendulum each: 1 + 3, motor (installed on the host) : 1 + 4 S = 12, Allen key (wrench screw mouth plate) : 1 + 5, semi-automatic impact tester bearing adjustment device: 1 + 6, samples of the unit: 1 + 7, puller (in
Immediate consultation
Online Message
The bjjb-300b semi-automatic impact testing machine is used to determine the performance of metal materials under dynamic load, so as to judge the quality of materials under dynamic load.
This machine is semi-automatic control testing machine, the operation is simple and high efficiency, Yang pendulum is, impact, control, and can use the surplus energy of thrust sample after automatic Yang place ready for the next test, especially for continuous do impact test impact test lab and a lot of metallurgy, machinery manufacturing and other industries.
The bjjb-300b impact testing machine is in conformity with GB/ t3808-2002 "test of pendulum impact testing machine", and the impact test of metal materials is carried out according to GB/ t229-2007 "metal materials charpy impact test method".
1. Impact energy: 300J (sledgehammer) 150 (small hammer)
2. Impact velocity: 5.2m/s.
3, pendulum Yang Angle: 150 °
4. Span of sample support: 40mm.
5. Round Angle of support clamps: R1.0~1.5mm.
6. Semi-automatic impact test machine impact blade rounded Angle: R2.0~2.5mm R8mm.
7. Pendulum center to impact point distance: 750mm.
8. Standard sample size: 10 x 10(7.5 or 5) x 55mm.
9. Pendulum moment: M=160.7695N.m 80.3848n.m.
10. Power and power: three-phase four-wire 50Hz 380V 180W.
11. Dimensions: about 2100 x 650 x 1900mm.
12, the accuracy of Angle: 0.1 °
13. Weight: about 500Kg.
1, room temperature is 10 ℃ to 35 ℃ range;The relative humidity is not greater than 80%;
2. No vibration, no corrosive medium and clean environment without strong electromagnetic interference;
3. The fluctuation range of the power supply voltage shall be within 10% of the rated voltage;
4. Install correctly on solid foundation.
