Product name：Tube ring stiffness tester
Product model：
Product range：
Immediate consultation
Online Message

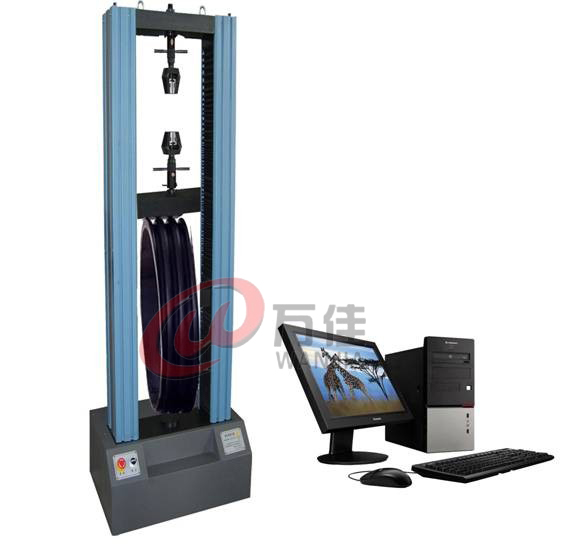

Pipe ring stiffness testing machine is designed for rigid polyvinyl chloride (UPVC) pipe, chlorinated polyvinyl chloride (CPVC), polyethylene (PE) pipe, crosslinked polyethylene (PE) X tube, three type polypropylene (pp-r) pipe, polybutylene (PB) pipe, engineering plastic (ABS), glass steel sand (RPM) pipe, aluminum plastic composite pipe (PAP) thermoplastic pipes such as steel-plastic composite pipe (SP), ring stiffness testing equipment.The initial ring stiffness of glass fiber reinforced plastic sand tube (FRPM) can also be detected.
Max testing force： | 50KN |
Test machine accuracy level： | 1class |
Test force range： | 2%FS--100%FS |
Test accuracy： | indicating value±1% |
Beam displacement measurement： | sharpness of separation0.01mm |
Transformation degree of accuracy： | 優(yōu)于±0.5% |
Adjustable speed range： | 1mm/min～300mm/min |
control accuracy： | ±1% |
Test height space： | 1500mm(but customization) |
Test width space： | 380mm(but customization) |
The main machine form： | Portal frame structure |
The main machine length： | 750×600×2300mm |
Heavy volume： | 650Kg |
surface： | Should comply with GB/T2611 requirements |
A set of sex： | accord with a standard |
Work environment： | Room temperature ~ 45 ℃, humidity 20% ~ 80% |
Protection work can： | Overload protection, limit protection, electric control system overcurrent, overpressure, overheating overtemperature protection. |
