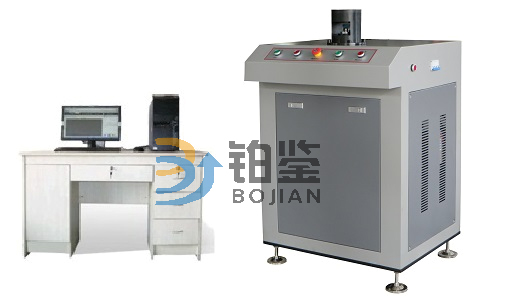

Microcomputer control cup drawing machine adopts mechanical and electrical integration design, neat, generous appearance, performance test is carried out on the metal plate and strip process of precision equipment, can be realized by GB/T 4156-2007 "sheet metal materials and thin with sven-goran eriksson cup drawing test, inspection of metal sheet and strip in the plastic deformation properties in the process of test.

Set up by computer, automatic loading, automatic stop after completion of test.The computer automatically displays the parameters such as clamping force value, impact pressure value, cup process value and pressing speed.

GB/ t9753-2007 "color paint and varnish cup process"

GB/T 4156-2007 metal materials sheet and thin band erikson cup process test

1. The main characteristic of the microcomputer controlled cup process test machine is that the precision of the cup process is increased to 0.01mm, and the load speed of the main test force is equal to the rate control;

2. Handling aspect, has realized the historical breakthrough, we are in the oil cylinder, manual valve torque, on the basis of the improvement for the use of imported servo motor to do the power, the whole test process to realize the closed loop control, constant loading rate, thus greatly improve the control precision of the machine;

3.The manual hydraulic loading is electromechanical loading, and the hydraulic sensor is the wheel and radial sensor, which improves the test precision of the main test force and the fracture accuracy of the control sample.

4. We also used high-precision displacement sensor to measure the cup process value, which can guarantee the accuracy of the two decimal places after the decimal point.

5. A large modification was made in the appearance, and the original equipment was bulky and bulky as a whole spray coating, and the overall appearance was neat and generous.

1.最大試驗力：60kN

2.測力范圍：1.2kN～60kN

3.測力精度：示值的±1％

4.試驗準確度：杯突值精度±0.01mm

5.試驗速度：2～100mm/min  （任意速率恒速控制）

6.沖頭杯突模具：φ20±0.05mm（選配非標模具： φ15±0.05；φ8±0.05）

7.試樣寬度：≥90mm(小尺寸試樣應選配非標模具)

8.標準沖頭球徑：Sφ20±0.05mm

9.標準壓模孔徑：φ27±0.05mm

10.標準墊模孔徑：φ33±0.1mm

11.夾持試樣厚度：0.1～2mm （另可實現超薄板材試驗）

12.沖頭最大行程：60mm

13.夾緊活塞行程：≤20mm

14.1夾緊負荷：10kN

15.杯突值分辨率：0.01mm

16.液壓油:N46號液壓油
